Brand - TIMKEN
Item Number - JP13043P-JP13016HR TIMKEN
Category - Precision Tapered Roller Bearings - TSHR (Hydra-Rib and Spring-Rib) Style
Bore Diameter (d) mm - 125
Bore Diameter (d) inch - 4.9213
Flange Diameter (D1) mm - 200
Flange Diameter (D1) inch - 7.874
Seat Diameter (D) mm - 190
Seat Diameter (D) inch - 7.4803
Width (T1) mm - 29
Width (T1) inch - 1.1417
Load Rating (90 million revolutions) (C90) kN - 49.9
Load Rating (90 million revolutions) (C90) lbs - 11200
Cup Width (C) mm - 72
Cup Width (C) inch - 2.8346
Seat Width (C1) mm - 12
Seat Width (C1) inch - 0.4724
Effective Center Location (a) mm - -7.6
Effective Center Location (a) inch - -0.3
Shaft Radius (R) mm - 3
Shaft Radius (R) inch - 0.12
Shaft Shoulder Diameter (mm) - 138
Shaft Shoulder Diameter (inch) - 5.43
Housing Radius (r) mm - 1
Housing Radius (r) inch - 0.04
Stiffness (Kr10^6) N/mm - 2.78
Stiffness (Kr10^6) lbs/in - 15.9
Stiffness (Fr) kN - 4.99
Stiffness (Fr) lbs - 1120
Stiffness (Ka10^6) N/mm - 0.2
Stiffness (Ka10^6) lbs/in - 1.14
Stiffness (Fa) kN - 2.5
Stiffness (Fa) lbs - 561

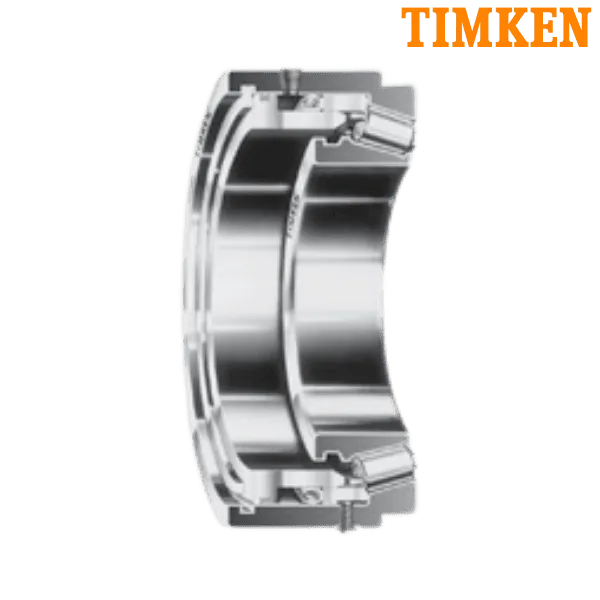

** Images are for representation purposes only
